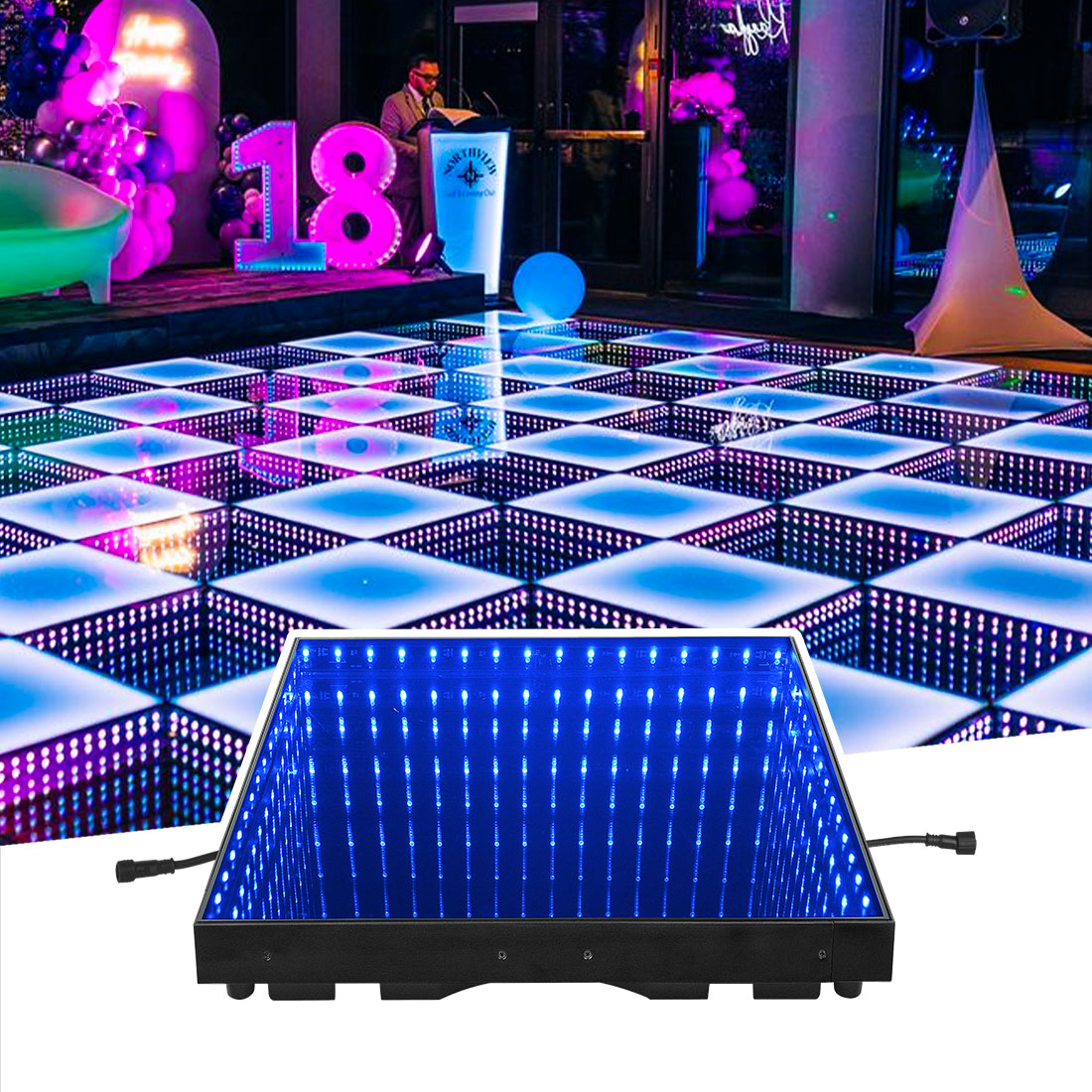

MOKA SFX MK-LD03C Dance Floor Stage Light with Flight Case Wired Infinite Abyss 3D LED Dance Floor with Flight Case

Description

• After-sales guarantee: Our packaging includes all accessories, such as power supplies, controllers, protective edges, wires, etc. If you receive any damaged products, we will replace them free of charge, with a 12-month warranty period.

• Control modes: SD controller, DMX, sound activation, remote control
• The LED dance floor tiles are made of scratch-resistant tempered double-layer glass, capable of bearing up to 500 kg/m². They feature anti-slip properties, ensuring safety even if beverages are spilled on them.
• Suitable scenes: parties, bars, weddings, nightclubs, and various events.
• Please note: The size of each tile for the wired model is 50*50*7 cm. If you wish to customize the size and area of the dance floor according to your venue, please contact us at support@mokalighting.com.

Technical Parameter

• Features

1. Lifetime: ≥100,000 hours, with high clarity and uniform colors.
2. Durable materials: ABS plastic and tempered glass.
3. Full-color RGB: capable of presenting vibrant color effects.

• Specification

1. Voltage: 90-240VAC, 50/60 hz
2. Power consumption: 12w
3. Led QTY: 60 pcs 5050 SMD
4. Color: RGB 3IN1
5. Life-span:  ≥100000h
6.  Surface Board: Tempered glass
7. Waterproof: IP55
8. Load-bearing: 500kg/m²
9. Control modes: SD controller, DMX, sound activation, remote control

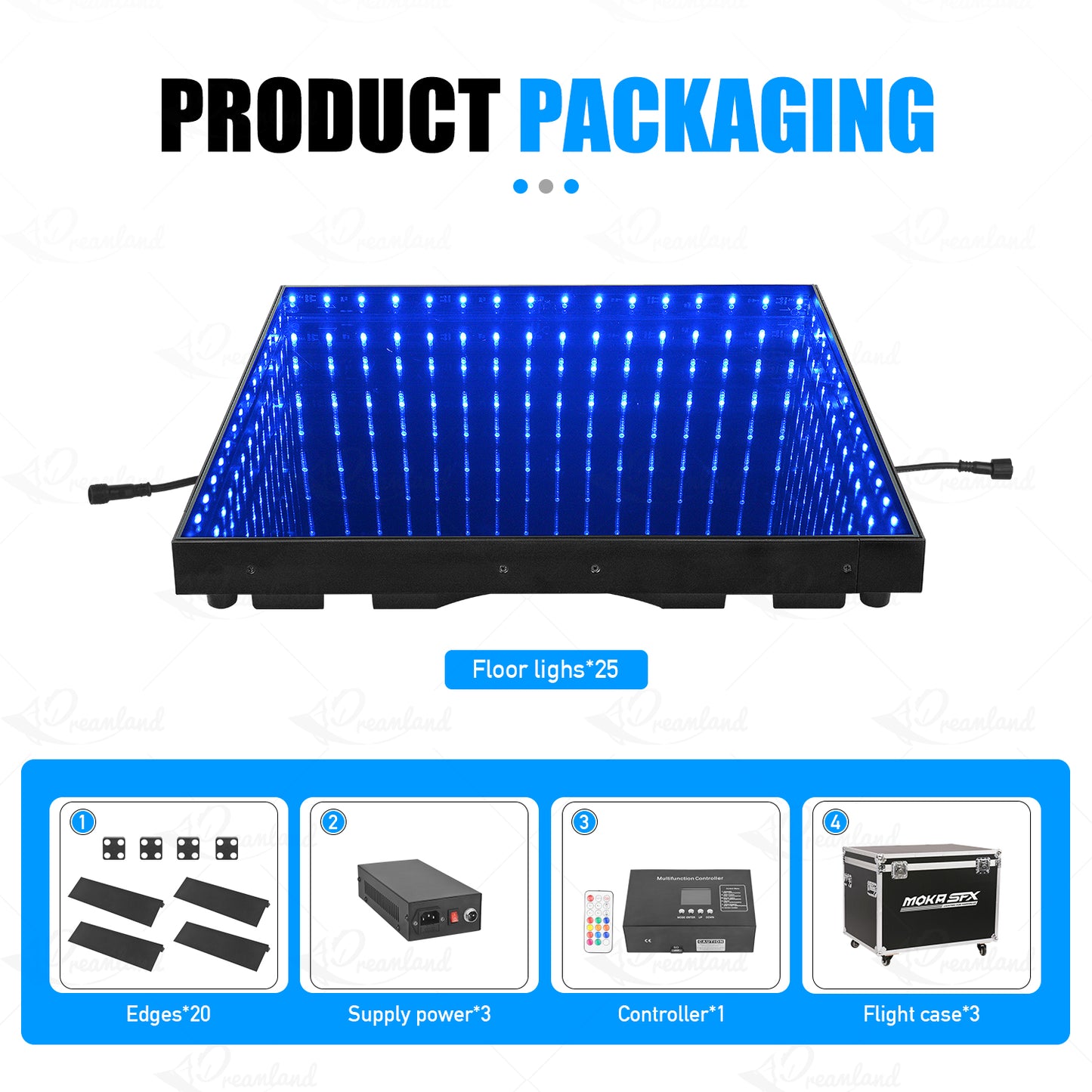

Included accessories：

• Power Supply
• SD Controller
• Protection Edge
• Bottom Locking Plate
• Flight Case

We will configure the number of these accessories above according to the number of floor tiles.

How To Use

• How to install Your MK-LD03C LED Dance Floor Panel (wired)?

1. Please refer to the instructional video to operate.
2. According to the linking method, there are magnetic, wiring, and built-in power supply models of LED dance floors, regardless of the lighting effect, the same type of connection, the same way.
3. Note that the power must be cut off during the connection process, to avoid short circuits caused by misconnection.
4. The SD controller has 8 interfaces, which can control up to 400 pieces of floor tiles.
5. The SD controller's SD card has 96 built-in effects, which can be switched by controlling the buttons on the box.
6. This standard signal controller comes with voice control, master-slave, and self-propelled modes, which can be operated by buttons directly.
7. DMX control mode: If you want to use DMX512 to control, you can use the DMX console, and link the SD controller with the DMX console.
8. PC control mode: If you want to use the computer controller, please tell us, and we will provide you with a controller specially used to link the computer. Then link the floor tile and the controller with signal cables, finally, you can use the software control on the computer.

   We will equip complete power boxes and signal boxes according to the number of floor tiles. If you want to customize the floors according to your needs, please provide us with the area or number of tiles you need.

  Please contact us at support@mokalighting.com

  Please watch the video：

Shipping

• It takes 1-2 weeks for the factory to make the LED dance floor.

• Shipping from China: free shipping in 45-60 days.
• Shipping from US warehouse: free shipping in 7-15 days.
• Regardless of where the goods are sent from, we will provide tracking information in time.


Q&A

Q: If a guest is wearing a skirt and stands on the floor tile, will it reflect light?

A: Yes, because the dance floor's surface is a mirror, so the light will be reflected.

Q: What should be considered when choosing a party dance floor venue?

A: When choosing a venue, consider factors such as space capacity, lighting options the number of guests, and whether the ground is flat or not. Ensuring sufficient space to set up the dance floor without compromising the overall ambiance is crucial.

Q: How does an LED dance floor work?

A: LED dance floor tile lights use LED lights and mirrors to create a 3D effect. The 3D effect is created by placing lights between two mirrors. Light reflects off the mirrors. The sides and bottoms of the tiles are reflective. This causes the light to scatter and produce multidimensional colors.

Q: Will the LED dance floor get scratched?

A: The LED dance floor tile lights are made of durable double-layer tempered organic glass material, nearly shatterproof, sturdy, and scratch-resistant, capable of bearing up to 500 kg/m². Each tile weighs 12 kg and is highly scratch-resistant, but caution is needed for gravel on shoe soles.

Q: How are LED dance floors installed?

A: Installing an LED dance floor is usually straightforward. After selecting the venue, start planning the route, laying out the panels, and then connecting the panels. Ensure the wires are properly placed and not compressed, and securely interlock the panels. The installation process includes connecting the panels, power supply, and controller, ensuring the panels are level, and testing the lighting effects.

Q: Is it non-slip?

A: It is non-slip and meets IP55 standards, suitable for indoor use, and even safe to use in case of spilled drinks like alcoholic beverages. IP55 is the regular waterproof standard, but if you want to customize a higher waterproof level, please contact us!

Q: What are the control methods for the LED dance floor?

A: We offer various advanced control methods to meet different needs and creative setups. The main control methods include:

• SD card automatic operation
• DMX console control
• Sound activation
• Remote control
