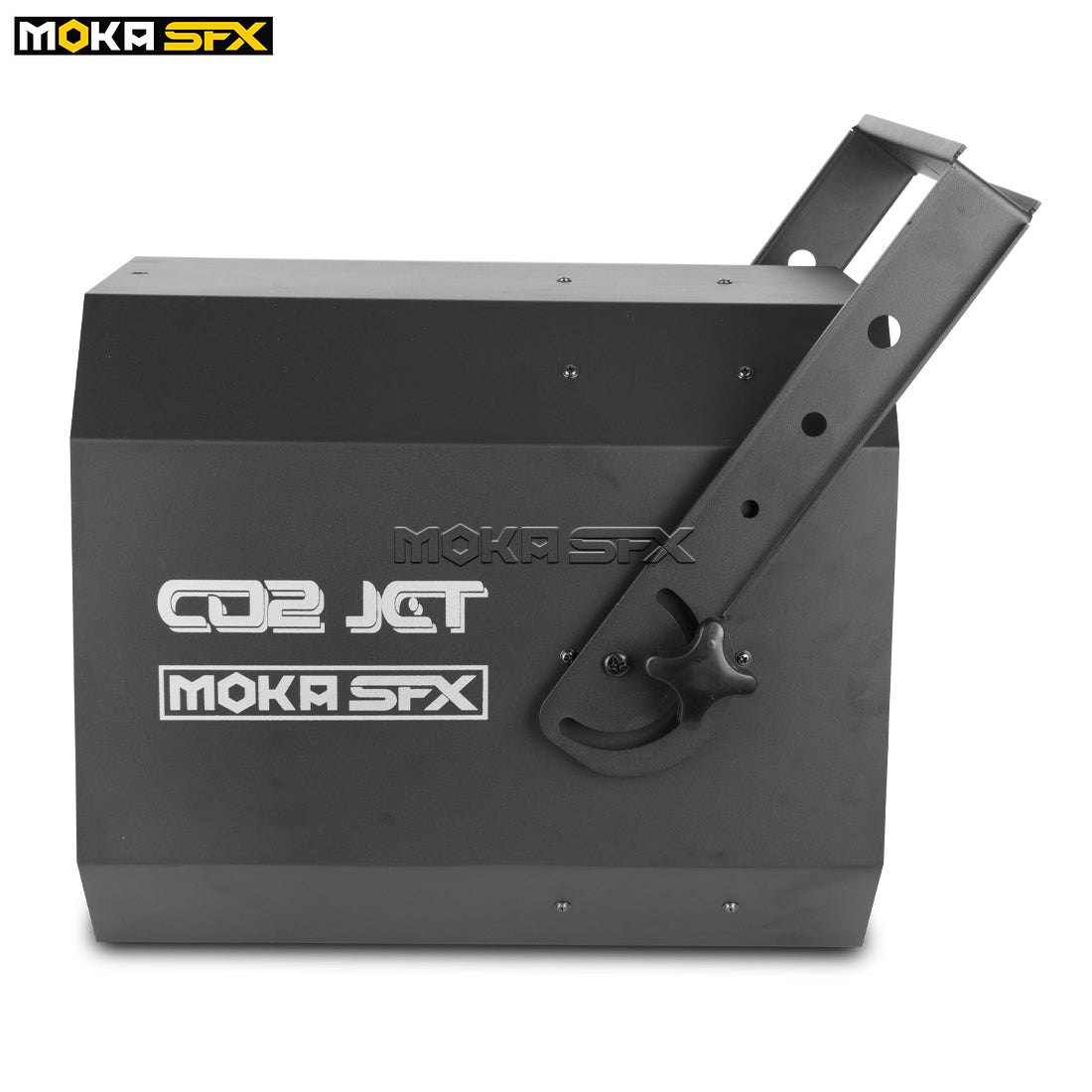

MOKA SFX MK-C13A Super CO2 Jet Cannon

Description

• The far-reaching jet smoke shocking distance can reach 15-20 meters.
• Unique design, with electronic control and DMX512 two control modes, easy to operate.
• The CO2 cannon can be connected to 4 CO2 cylinders for continuous use throughout the event.
• The CO2 jet cannon blaster allows you to put confetti in it along with co2 can be formed unique special effects.
• The system uses a professional custom Pressure-resistant solenoid valve that prevents it from cracking or breaking, for a longer service life.

Technical Parameter

• Specification :

          Voltage: AC110V/220V, 60Hz/50Hz
          Power: 50W
          Maximum pressure: 1400Psi
          Control: DMX512/Electronic control
          Spray height: 15-20m
          Product weight: 10.8kg
          Transportation weight: 21.5kg
          Product size: 40*33.5*33.5cm
          Package size:46*39*39cm

• Package includes:

            1pc CO2 machine

            1pc Power cord

            1pc 6m gas hose

            1pc Safety rope

            2pcs Knob

            1pc manual book

How to use

• INSTALLATION：

             1. Place the machine on a solid and even surface, and always ensure that there are no people within 3 meters of the CO2 Jet.

             2. To test it, you first need to check if the gas valve on the CO2 bottle is still in a closed position. Now you can check if the machine has been installed properly by switching the electricity on and off. If the system has been connected properly you will hear a clicking sound which is produced by the opening and closing of the magnetic valve in the CO2 Jet.

            3. Connect the high-pressure CO2 hoses to the CO2 bottles. Place the CO2 bottles (liquid CO2 with dip pipe) on an even and solid surface. Place the bottles in such a position that the valve opening does not point in the direction of persons or objects.

            4. Connect the hose to the CO2 Jet and let it click into place so it is firmly secure.

            5. When the system is properly connected you can open the valves of the CO2 bottles. Check for leaks.

            6. When the gas hoses are not properly connected gas can escape. If this is the case then turn the couplings tighter until the gas is no longer escaping. The CO2 Jet is now ready for use.

Shipping

• U.S. warehouse: 2-5 working days to U.S., 7-12 working days to other areas.
• Spain warehouse: 2-4 working days to Spain, 7-12 working days to other EU regions.
• Poland warehouse: 2-4 working days to Poland, 7-12 working days to the rest of the EU.
• China warehouse: 7-20 working days for direct shipment from China.
• The transportation type depends on the region, and it is uniformly displayed as international shipping.
• The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
• If you have any questions, please leave a message.


Q&A

• Q: How long can the trachea be customized?

            A: The length can be customized according to your needs. The longest is generally not recommended to be over 35 meters, but we also have customers who have made a length of about 50 meters, because the longer the pipe, the more gas will be used in the pipe during use. This will waste more gas and affect the use effect.

• Q: How is the effect, can I jet against people, will it have any effect?

            A: Yes, but it has a safe distance. Please always ensure that no one is within 3 meters of the CO2 column machine in the direction of injection.

• Q: Where to buy carbon dioxide gas?

            A: This gas can generally be purchased at your local store.

• Q: How long can an air column gun spray and can it continue to spray?

            A: The gas column machine can not continue jetting. If the jetting time is too long and the air pressure is too high, the valve may be damaged. In order to ensure that the machine parts have a normal service life, we recommend that each jet be controlled for about 10 seconds, it takes 5 seconds in the middle to blow again. This way, you can avoid damage to the accessories due to improper operation.

• Q: How long is your product warranty? If it’s a quality problem, who undertakes the freight out and home?

            A: 1 year. If the machine is damaged and fails, please contact customer service the first time, and provide your purchase order number, and the video or appearance photos of the product work. we will start the after-sales maintenance service for you, and help you to repair the machine perfectly. During the warranty period, replacement parts are shipped free of charge. For detailed information please refer to the Return Policy.

• Q: Is there any requirement for the gas used?

            A: Generally, the 40L gas cylinders used in our factory are about 6.5-7 pressures, and the pressure will rise again under high-temperature conditions. It can fill up to 24 kg of gas. Generally, it is 23KG, but not less than 18KG. You can refer to these values.

• Q: How far can this machine spray?

            A: The spray height of the machine is affected by the pressure of the cylinder. Normally, it can spray 8-10 meters.

• Q: Is there a relevant certificate?


            A: Yes, all of our products are CE, FCC, and ROSH certified and can be exported.

• Q: What to do if the machine does not blow air?

            A: Please provide the video and we will give feedback to our technical department to see if we can guide you to solve the problem. If there is no way, you need to return the machine to the factory for maintenance.

• Q: Why is the gas emitted by our machine sometimes big and small?

            A: Please describe the specific situation and we will give feedback to our technical department to see if we can guide you to solve the problem. If there is no way, you need to return the machine to the factory for maintenance.
