Description
Description

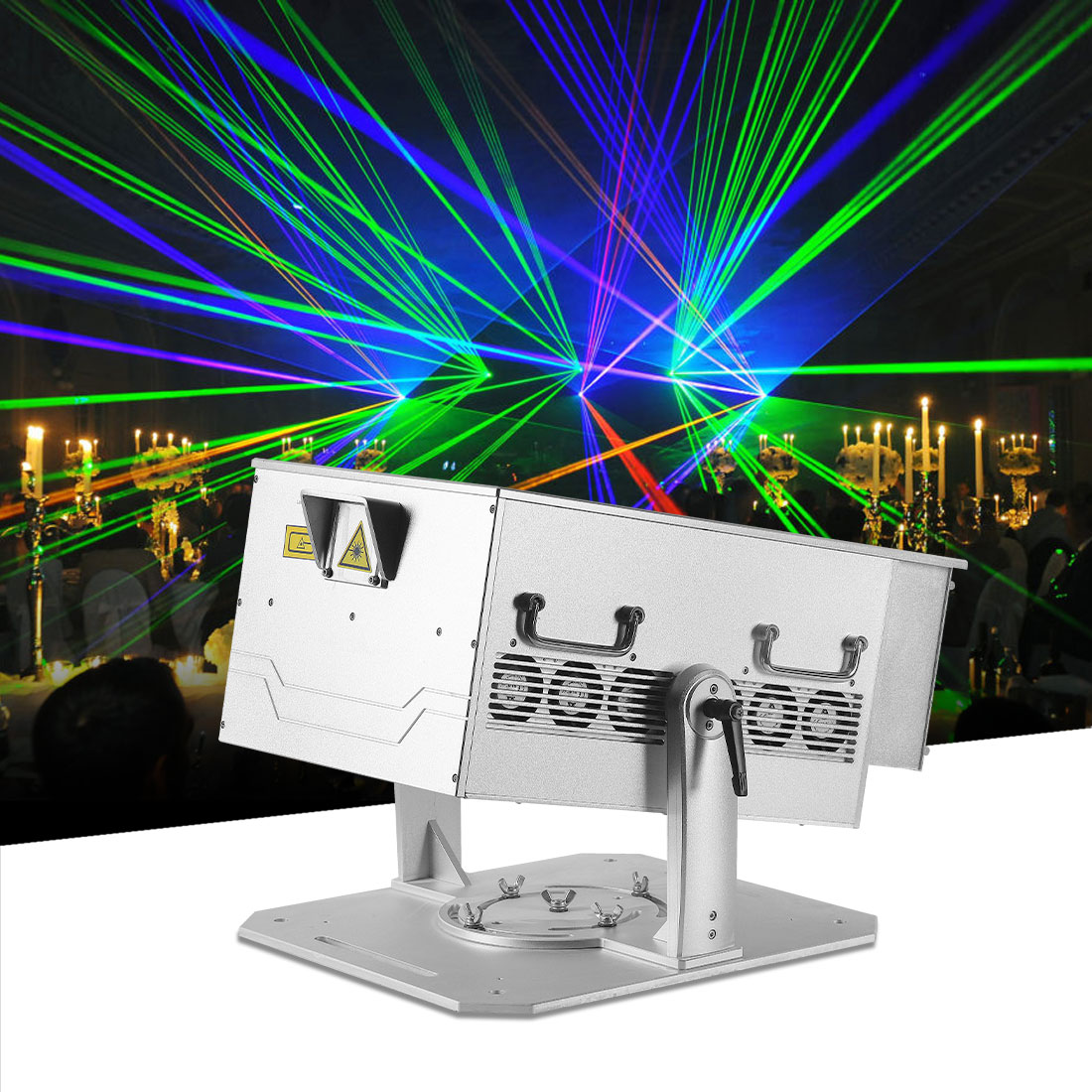

- The 20W full-color animation laser allows for seamless switching between highly saturated colors and rich patterns.
- The laser light offers 200 preset patterns for you to choose from.
- It can project in different colors and at various speeds.
- The control system includes ILDA, DMX512, sound control, auto mode, and master-slave mode.
- The entire unit features an IP65 waterproof design, making it dustproof, maintenance-free, and stable in quality with a small light spot and analog modulation of up to 100Khz.
Our Advantages：
- 5W green laser, high brightness, and reasonable laser beam.
- The laser light has 200 preset patterns for you to choose from.
- The control system includes ILDA, DMX512, Sound, Automatic, and Master-slave control modes.
- The laser projector has a sealing design, is dustproof, maintenance-free, stable quality, small spot, and Analog modulation up to 100Khz.
- Uses an intelligent dual temperature control system—silent fan cooling + semiconductor TEC heat sink.
Technical Specifications
Specifications：
| Parameter | Description |
|---|---|
| Input Voltage | 100V – 240V/AC, 50/60Hz |
| Power | 320W |
| Laser Power/Wavelength | R (Red): 5000mW 638nm G (Green): 7000mW 520nm B (Blue): 8000mW 455nm |
| Best Divergence Angle | ca. 6.5mm / ＜1.3mrad |
| Laser Source | Semiconductor Diode |
| Modulation Mode | Analog modulation 100KHz |
| Control Mode | ILDA, DMX512, sound control, auto mode, master-slave |
| Scanning System | DT50 ±30° |
| Cooling Method | Air cooling + TEC cooling |
| Shell Material | Aluminum |
| Operating Temperature | -10℃ to 45℃ |
| Product Size | 55× 45 × 36 cm |
| Net Weight | 32 kg |
| Packaging Size | 60 × 50 × 43 cm |
| Gross Weight | 66 kg |
Please Note：
We offer different power plugs, including UK, AU, EU, and US. Please let us know your power requirements, otherwise, we will select according to your country/region.
How to Use
- Open the packaging box, count the accessories, and carefully read the user manual.
- Before use, check if all parts of the machine are intact.
- Check if the power supply and socket meet the requirements.
- After connecting the power supply, press the "ON" switch.
- If you are using the voice control mode or automatic mode, you can set it up on the display screen according to the menu instructions.
- If using DMX signal control, use a DMX signal cable to connect the machine to the DMX console, set the DMX address and channel mode, and operate according to the channel list in the manual.
- Precautions
- The laser requires the safety key to be turned on before emitting light.
- The Interlock must be in a connected state to emit light.
- Before using any mode other than IDLA mode, the IDLA mode must be set to off; and the IDLA cable needs to be unplugged (inserting the IDLA cable defaults to IDLA mode, and the program will automatically block other modes).
Shipping
- U.S. warehouse: 2-5 working days to U.S., 7-12 working days to other areas.
- Spain warehouse: 2-4 working days to Spain, 7-12 working days to other EU regions.
- Poland warehouse: 2-4 working days to Poland, 7-12 working days to the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
-
If you have any questions, please leave a message.
Q&A
- Q: How do you choose a laser light？
A: According to the different usage scenarios, use different power laser lights.
- For small parties and family gatherings, 1W, 2W, 3W, 5W, and 6W laser lights can be enough, because the price is cheap and the operation method is simple.
- For a bar or a club, it is recommended to choose a 10W laser light. According to the area of the bar, it can be equipped with 2-6 sets of equipment. The 10W laser light can carry out complex requirements such as laser engraving patterns, which can meet all the needs of the bar.
- For concerts, music festivals, celebrations, and other activities, it is recommended to choose 20W, and 30W laser lights.
-For urban outdoor landmarks, it is recommended to choose high-power laser lights, 30W-100W, depending on specific requirements, if you need more professional guidance, please contact our customer service.
- Q: Do your laser lights have a security key?
A: Yes, every laser light has a security key and a standard interlock.
- Q: Do I need to buy FB4?
A: The laser light has a self-propelled mode with various changes, which can meet most usage scenarios. If you need to customize the effect, you can buy FB4 on the local professional website.
Recommended website: https://pangolin.com/
