Description
Description

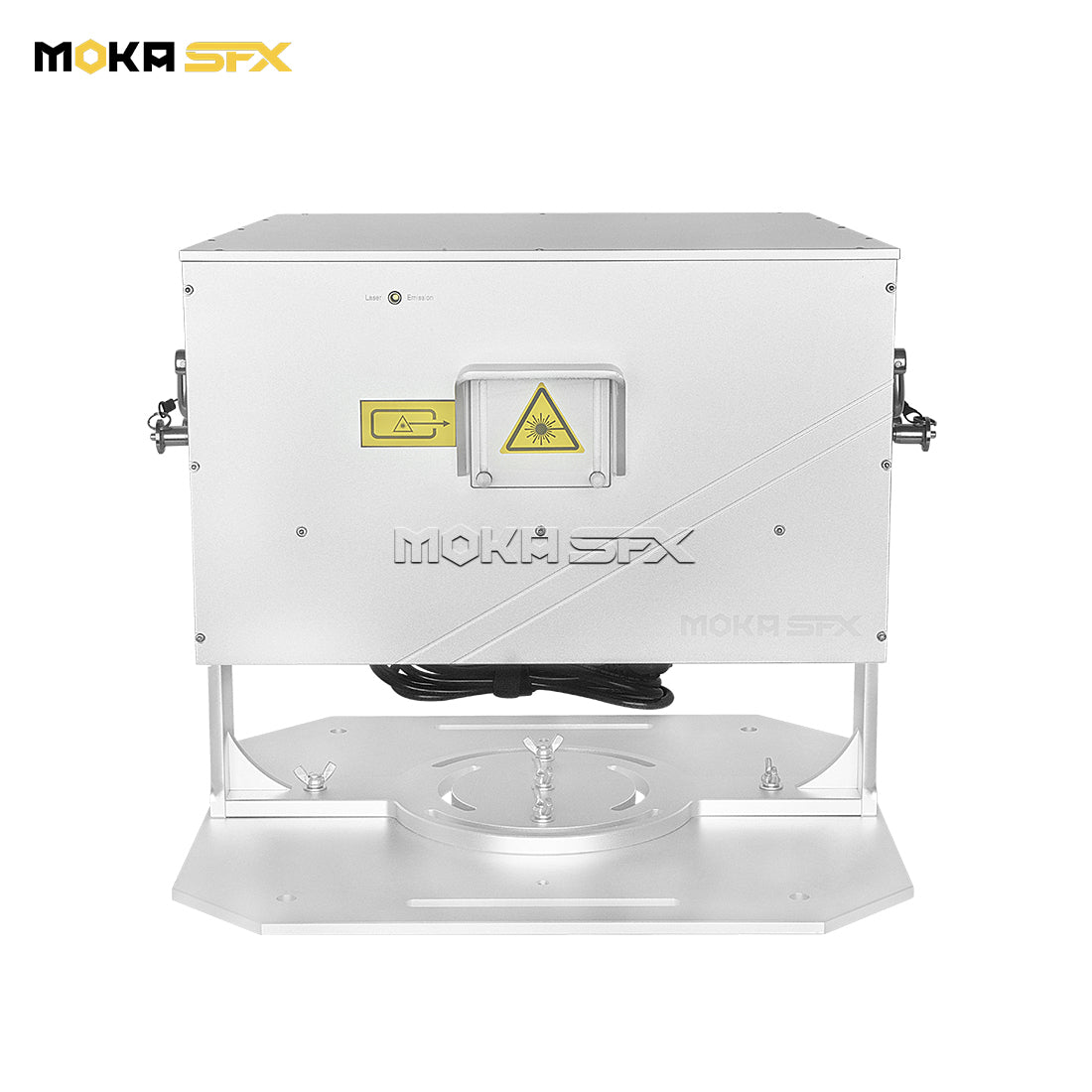

- Experience the brilliance of Las Vegas lights with this 30W full-color animation laser. Effortlessly switch between high-saturated colors and rich patterns to create a stunning visual impact for your event.
- The laser light has 200 preset patterns for you to choose from.
- It can be projected in different colors and at various speeds.
- The control system includes ILDA, DMX512, Sound, Automatic, and Master-slave.
- IP65 waterproof design for the whole machine, dustproof, maintenance-free, stable quality, small spot, Analog modulation up to 100k.
Our Advantages:
- The light has a small volume, saves transportation costs, and is easy to move.
- The whole exterior of the light body uses an Aluminum case, which makes the body plane smooth and brings a good tactile impression. What's more, it is less prone to wear and rust.
- The logo was printed by laser, not easy to fall off.
-
Uses an intelligent dual temperature control system—silent fan cooling + semiconductor TEC heat sink.
Technical Parameter
Specification:
| Parameter | Description |
|---|---|
| Input Voltage | 100V – 240V / AC, 50/60 Hz |
| Power | 480W |
| Laser Power/Wavelength | R (Red): 8000mW 638nm G (Green): 9000mW 520nm B (Blue): 13000mW 455nm |
| Spot Divergence Angle | ca. 8mm / <1.3mrad |
| Laser Source | Semiconductor Diode |
| Modulation Mode | Analog Modulation 100kHz |
| Control Mode | ILDA, DMX512, Sound, Automatic, Master-Slave |
| Scanning System | DT50BB ±30° |
| Cooling Method | Air Cooling + TEC Cooling |
| Shell Material | Aluminum |
| Working Temperature | -10℃ to 45℃ |
| Product Size | 55 × 45 × 36 cm |
| Net Weight (N.W.) | 36 kg |
| Packing Size | 60 × 50 × 43 cm |
| Gross Weight (G.W.) | 70 kg |
Applicable places: DJs, bands, bars, pubs, clubs, skating rinks, KTV, family parties, birthdays, celebrations, weddings, festivals, shopping malls, stores, stores, and other designated places.
Please Note:
We have different power supply plugs, United Kingdom plugs, AU plugs, EU plugs, the USA plugs. Please let us know the power supply you need, or we will choose everything according to your country.
How To Use
- Open the box, count the number of accessories, and read the manual carefully.
- Before use, please check if all parts of the machine are intact.
- Check whether the power supply and socket meet the requirements.
- After connecting the power and then press the "ON" switch.
- If you use voice control mode and automatic mode, you can set it on the display screen according to the menu instructions.
- If it is DMX signal control, please use the DMX signal cable to connect the machine and the DMX console, set the DMX address and channel mode, and operate according to the channel list in the manual.
- Precautions
- The laser needs to turn on the Key safety key before it can emit light.
- The interlock must be in the connected state before it can emit light.
- Before using all modes except IDLA mode, you need to adjust the IDLA mode to off; and you need to unplug the IDLA cable (plugging in the IDLA cable will default to IDLA mode, and the program will automatically block other modes.
Shipping
- U.S. warehouse: 2-5 working days to U.S., 7-12 working days to other areas.
- Spain warehouse: 2-4 working days to Spain, 7-12 working days to other EU regions.
- Poland warehouse: 2-4 working days to Poland, 7-12 working days to the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
-
If you have any questions, please leave a message.
Q&A
A: According to the different usage scenarios, use different power laser lights.
- For small parties and family gatherings, 1W, 2W, 3W, 5W, and 6W laser lights can be enough, because the price is cheap and the operation method is simple.
- For a bar or a club, it is recommended to choose a 10W laser light. According to the area of the bar, it can be equipped with 2-6 sets of equipment. The 10W laser light can carry out complex requirements such as laser engraving patterns, which can meet all the needs of the bar.
- For concerts, music festivals, celebrations, and other activities, it is recommended to choose 20W, and 30W laser lights.
-For urban outdoor landmarks, it is recommended to choose high-power laser lights, 30W-100W, depending on specific requirements, if you need more professional guidance, please contact our customer service.
- Q: Do your laser lights have a security key?
A: Yes, every laser light has a security key and a standard interlock.
- Q: Do I need to buy FB4?
A: The laser light has a self-propelled mode with various changes, which can meet most usage scenarios. If you need to customize the effect, you can buy FB4 on the local professional website.
Recommended website: https://pangolin.com/
