Description
Description
1. Modular design, each channel photoelectric isolation, high safety, and reliability
2. Small size, bundled installation, easy installation
3. It can be used with three cores and five cores and can be replaced at any time on site, durable
Technical Parameter
Specification:
| Feature Description | Details |
|---|---|

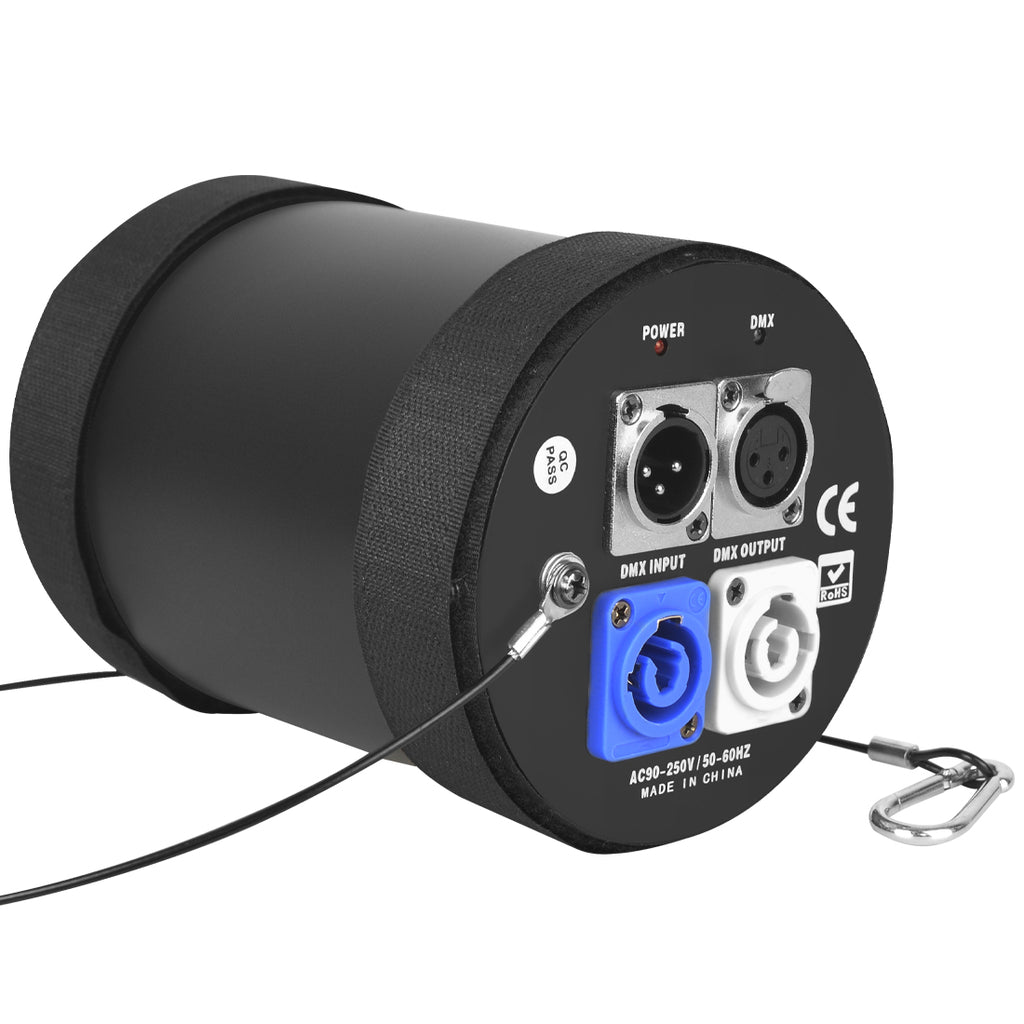

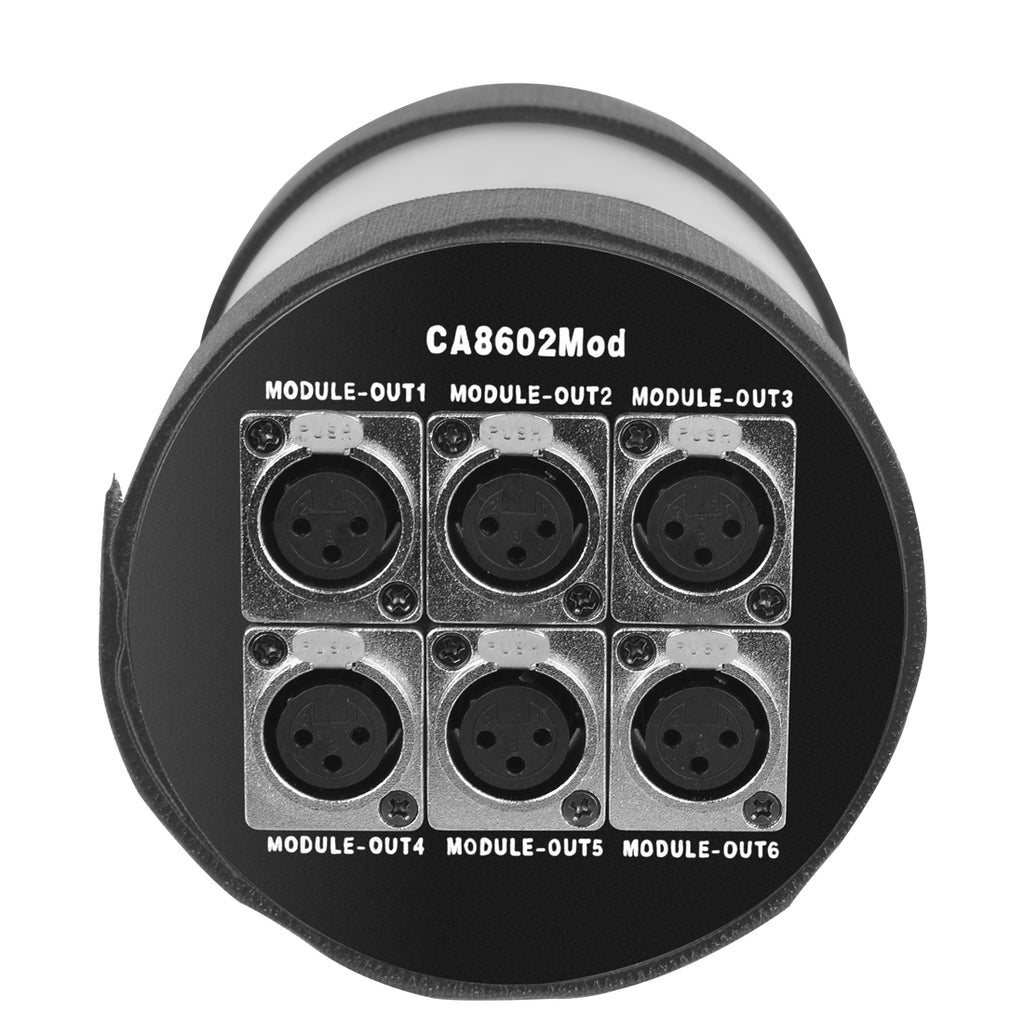

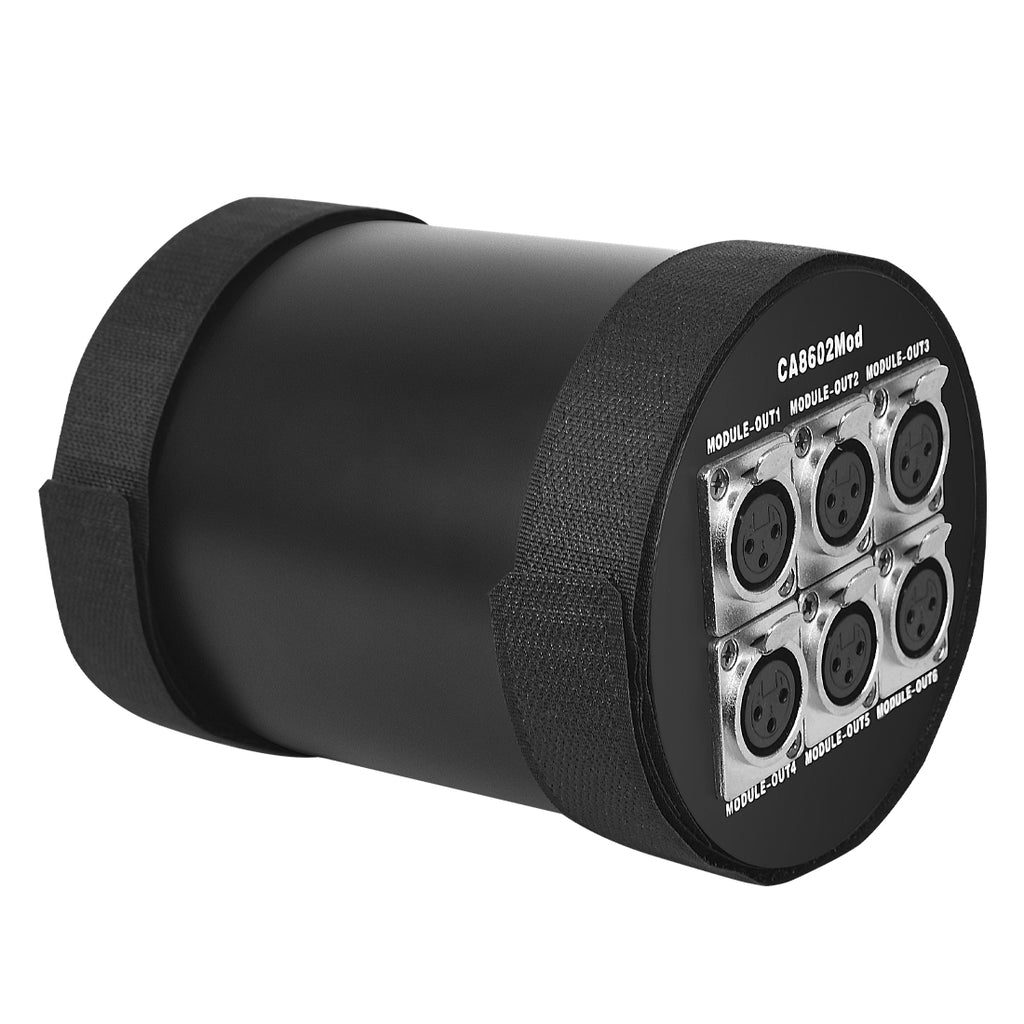

| Input/Output | One input and six outputs |
| Modular Design | Modular design allows for mixing 3-core and 5-core output modules; can be combined in desired form |
| On-Site Replacement | Damaged output modules can be easily replaced on-site due to external large current impact |
| Safety Protection | Installed on the light stand with a self-contained sub-mother sticker for additional safety measures |
| Power Supply | Independent power supply for input and output, with independent protection circuit and photoelectric isolation |
| Durability | Silver metal 3-core or 5-core XLR connectors for enhanced durability |
| Size & Weight | Size: 18*18*10 cm; Weight: 1.8kg |
| Item | Quantity |
|---|---|
| 6-Way DMX Amplifier | 1x |
| Power Cable | 1x |
| Manual Book | 1x |
Shipping
- China Warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region and is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will email you to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
