Description
Description

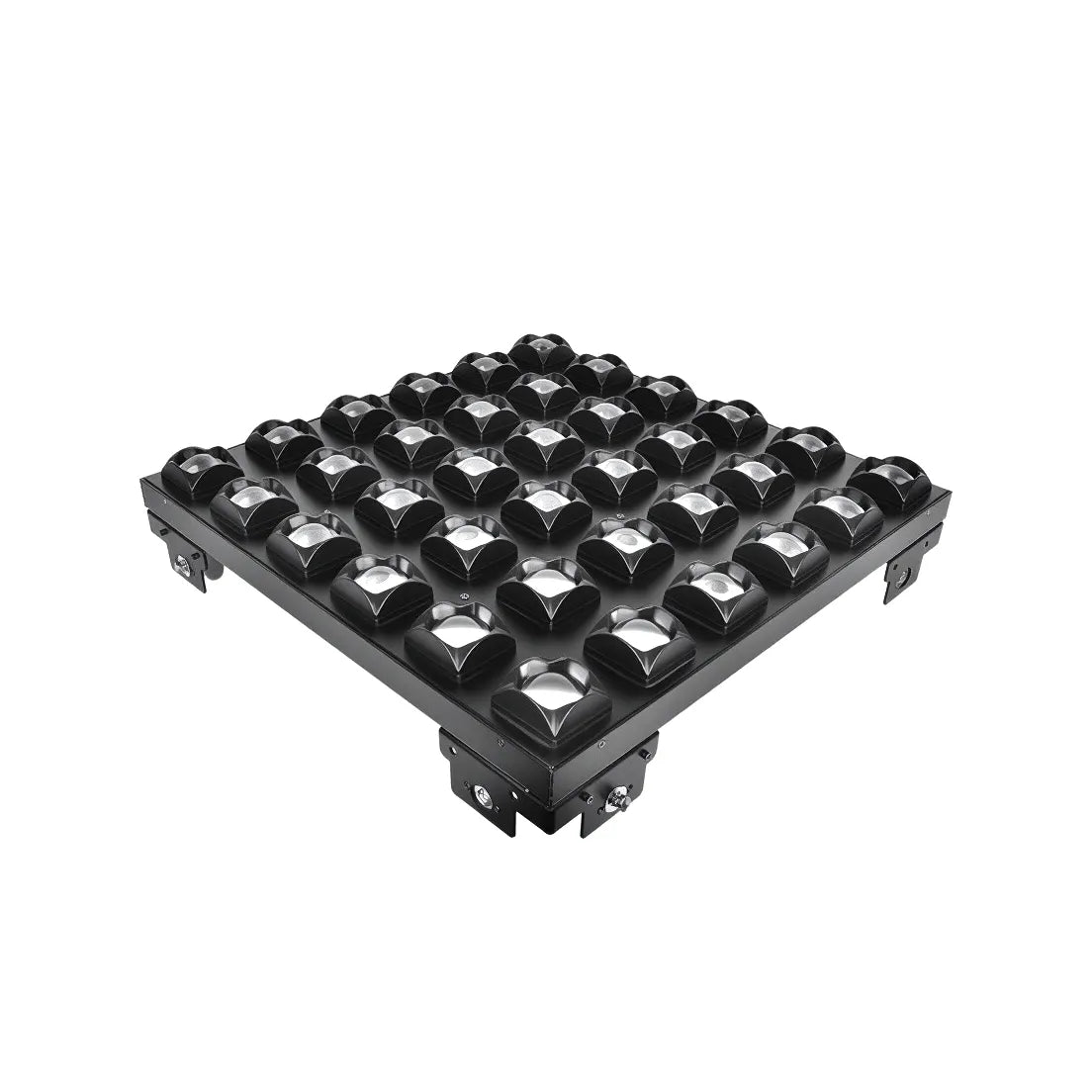

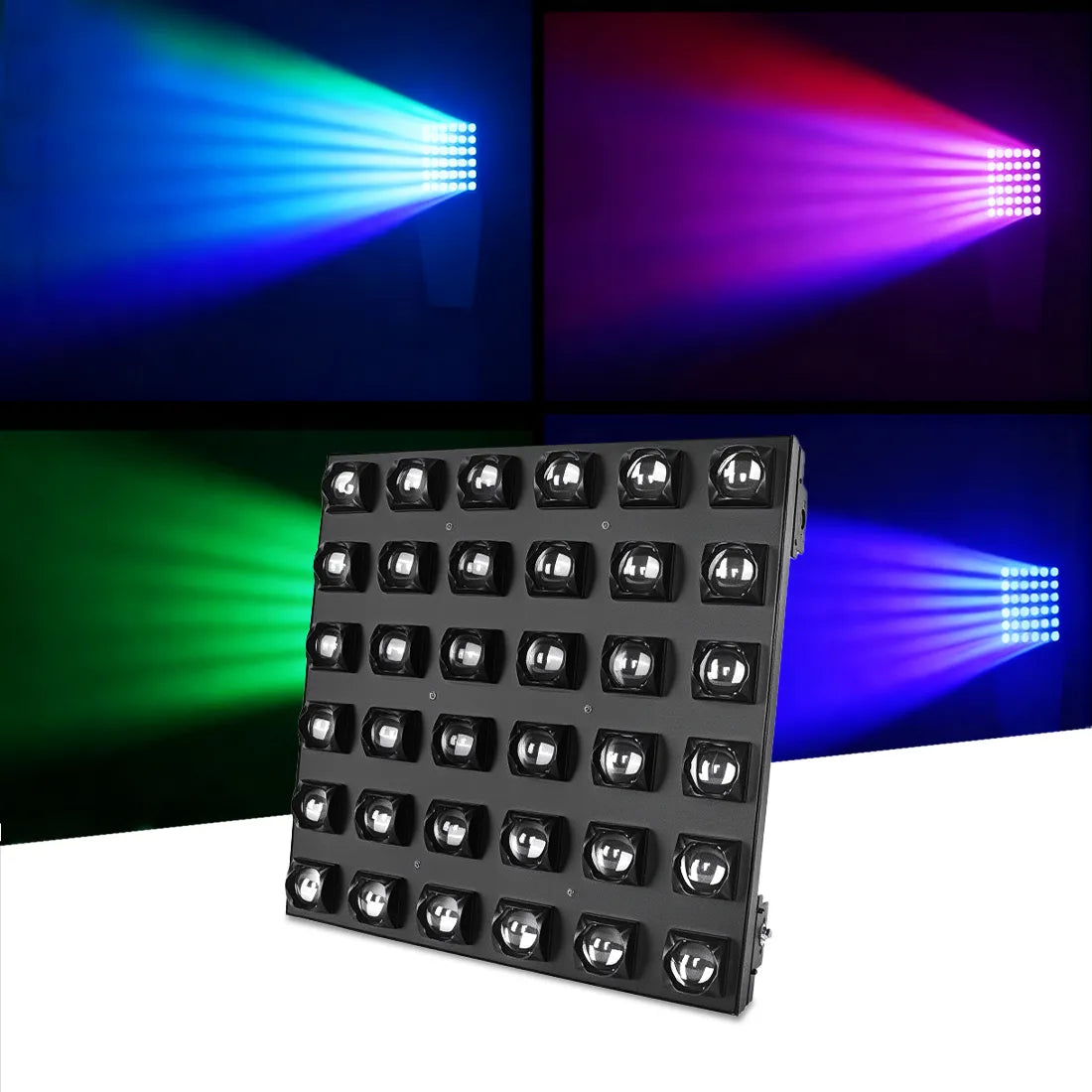

MATRIX 36x3W is a new amber beam matrix light. The light output effect is similar to a halogen lamp. The efficient lens angle is 4.5°, and the beam effect is more strong. MATRIX 363 has five channel modes(4/6/8/144/156CH). Each LED is controllable individually and creates different patterns. It’s available in stand-alone mode with internal signs and patterns with running effects with speed and step control (2 auto modes), DMX control, or Sound control (2 sound modes). It has with LCD with 4 control buttons. The PIXELPANEL is designed with a professional and safe locking system to combine several panels for professional programming. MATRIX 363 is suitable for large-scale concerts, television studios, theaters, nightclubs, bars, etc
Product Feature:
1. Easy installation and design, a key vertical and horizontal splicing
high-power high-brightness LED, energy-efficient
Four digital displays, with power, the signal indicates the display inversion
automatic shutdown function;
2. Stand-alone operation, DMX control, master and slave synchronous operation
Standard DMX-512, compatible with different manufacturers,
and different types of consoles;
3. Preset self-propelled program
ID code DMX extended function
Technical Parameter
Specification:
| Attribute | Details |
|---|---|
| Power Supply | AC100-240V/50-60Hz |
| Power | 120W |
| Light Source | 36 * 8W LED |
| Control | 36 pieces of 3W golden yellow light can be individually controlled |
| Camera Compatibility | The camera is not flashing, with a high frequency of 1200Hz |
| Beam Angle | 6 degrees, radiation range: above 8 degrees |
| Dimming Technology | 16-bit linear dimming technology achieves good dimming effect |
| Control Modes | Multiple DMA channel modes |
| Display | LCD display screen setting interface |
| LED Beads | 36 3W warm white light (2800K) LED beads with a lifespan of 50,000 hours |
| Lamp Body Weight | 6.5 KG |
| Inner Packaging Size | 51 x 51 x 15 cm |
| Outer Packaging Size | 53 x 53 x 34 cm |
Please Note:
We have different power supply plugs, United Kingdom plugs, AUplugs, EU plugs, the USA plugs, please let us know the power supply you need, or we will choose everything according to your country.
How To Use
Operation of display
- A Function Button: Main menu function selection
- B Add Button: Modify parameter value
- C Reduce Button: Modify parameter value
- D Enter: Confirm selected function / enter next level menu
The manual will be with the machine, if the manual is missing, please leave a message on the website, and we will contact you as soon as possible
Shipping
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
Q&A
- Q: What should I do if I don't like the goods after receiving the goods?
- A: Sorry, if it is not a quality problem, we do not support returns or exchanges, please check the product video and parameters before purchasing, or contact customer service to ask if it meets your needs before purchasing.
- Q: What should I do if the machine does not work normally after receiving the goods?
- A: First of all, please try to run the machine as soon as you receive the goods. If you find any problems, please take a video of the product running and send it to customer service. We will assist you in repairing or Replacement, the warranty period of the machine is one year.
- However, if the damage is caused by your improper use, we will not bear the cost, but will also assist you in dealing with it, and the maintenance fee and shipping fee will be borne by you.
